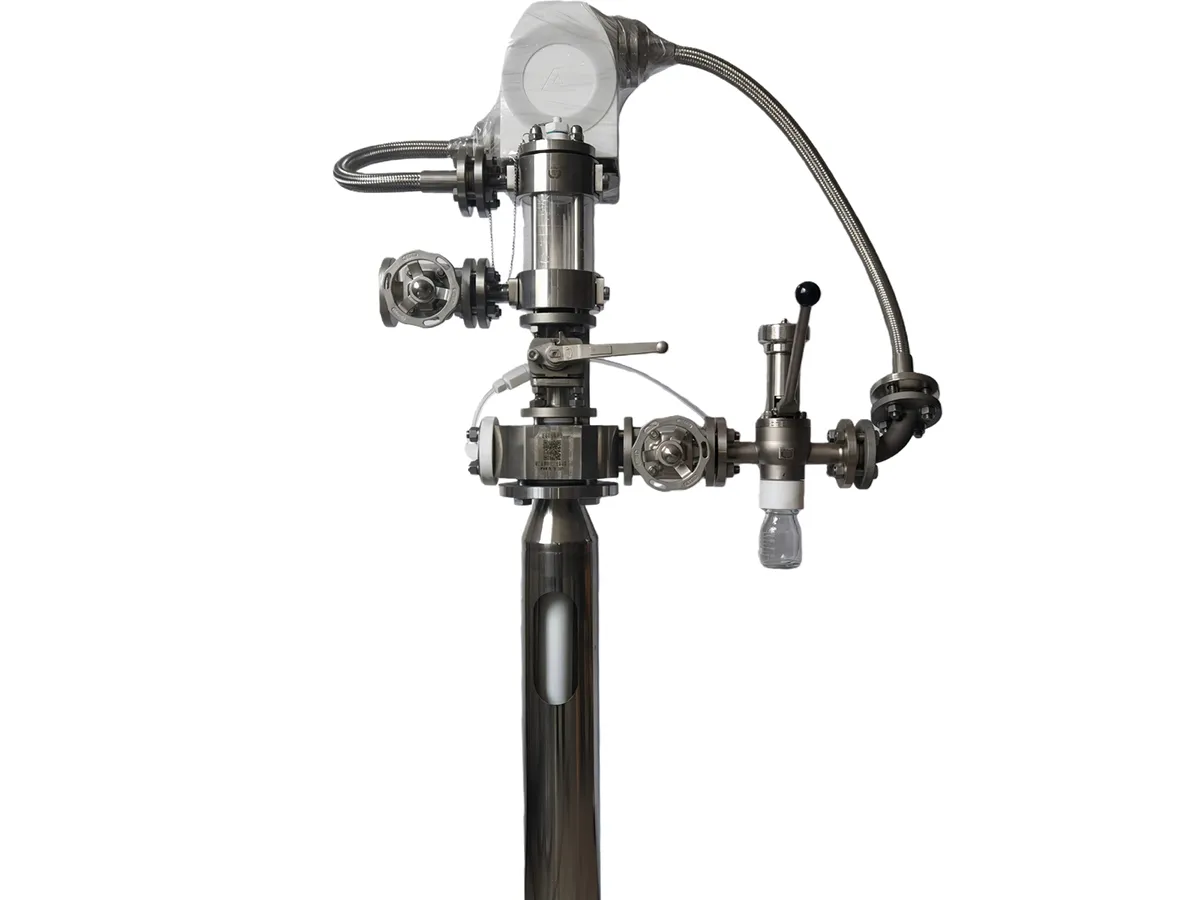

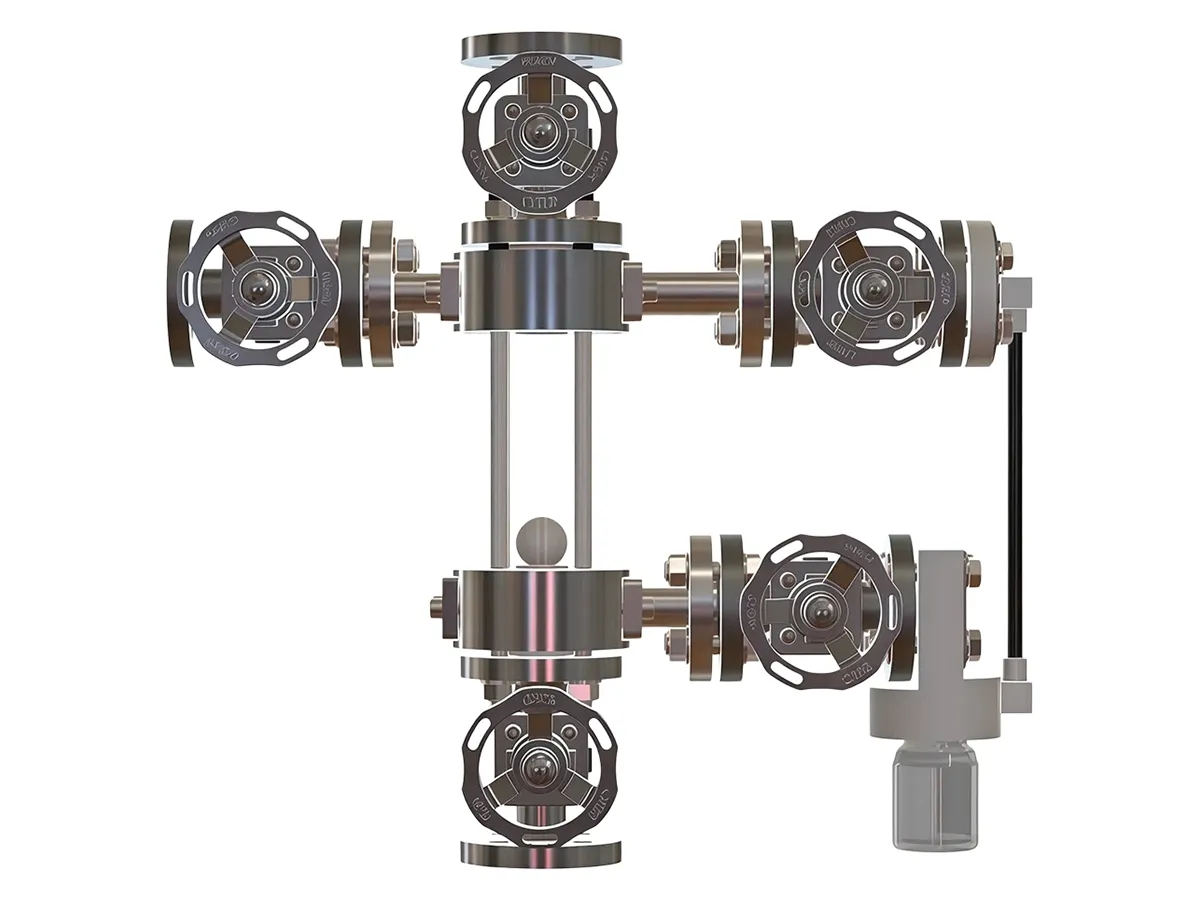

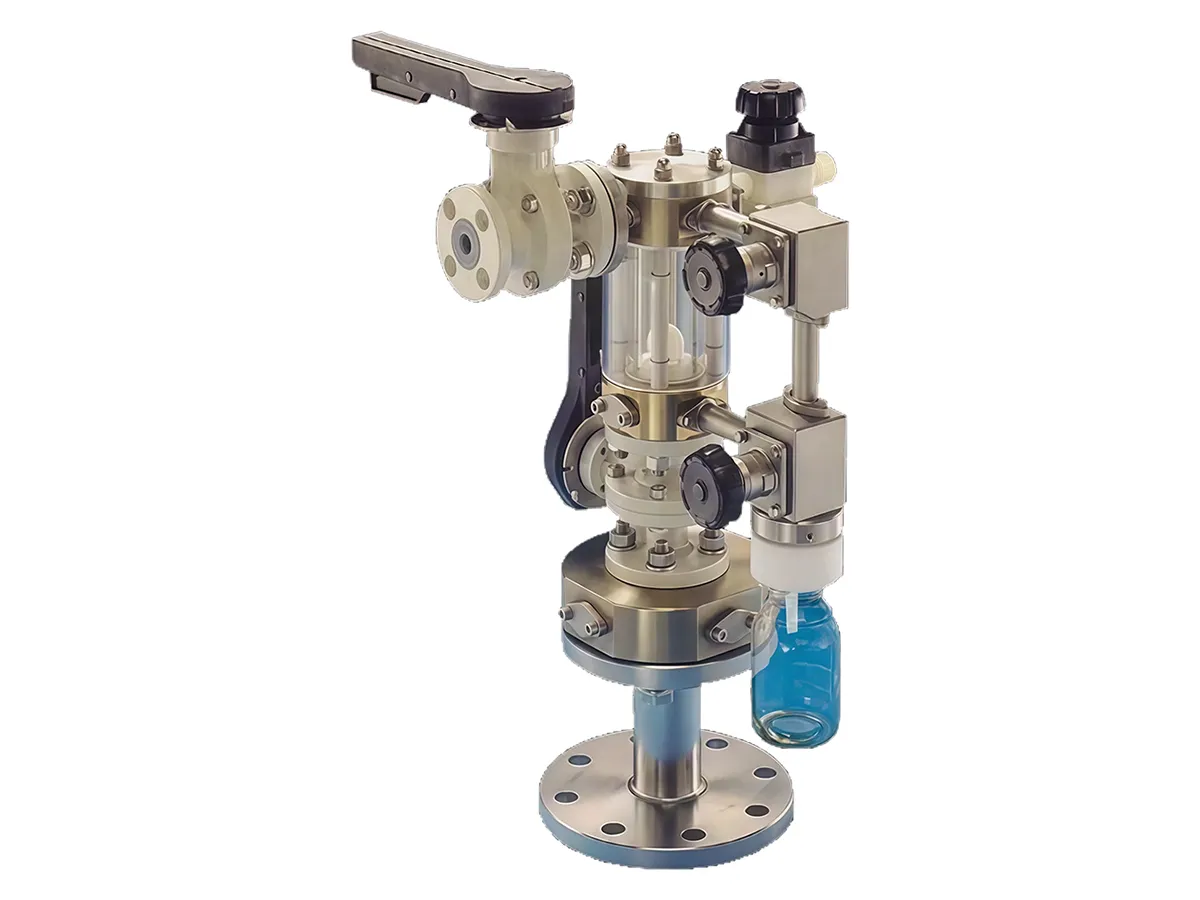

Reactor Sampling System
The reactor sampling system collects samples from a glass-lined reactor more safely, more cleanly, and with better control. Designed for corrosive process conditions, the reactor sampling system supports accurate sampling without interrupting production, helping protect product purity and improve routine analysis reliability.
Built around a glass-lined sampling tube with a carbon steel substrate and a 0.8-2.0 mm enamel lining, the reactor sampling system also includes PFA/PTFE sealing components and a sampling valve. The system is suitable for operating conditions of ≤1.6 MPa and -20°C to 200°C.
Request a Quote →
Features
- Strong Corrosion Resistance
For corrosive process media, the sampling tube offers strong resistance to most strong acids and many organic solvents, helping avoid metal contamination and improve sample accuracy. - High Sealing Performance
With a double sealing structure and PFA/PTFE sealing materials, the reactor sampling system provides high sealing reliability, with a leakage rate of ≤1 × 10⁻⁶ Pa•m³/s, helping prevent media release and outside air ingress. - Accurate and Clean Sampling
Precise sample collection is supported through controlled valve operation, with a sampling volume range of 5 mL to 50 mL. The smooth inner wall, with a surface roughness of Ra ≤0.8 μm, helps meet GMP requirements and reduce the risk of cross-contamination. - Convenient Operation and Maintenance
Designed with a modular structure, the reactor sampling system supports quick disassembly and easy maintenance. Sampling can be carried out without interrupting the reaction process, and the system is compatible with CIP cleaning. Under normal operating conditions, service life can remain in line with that of the reactor, typically 8 years or more.

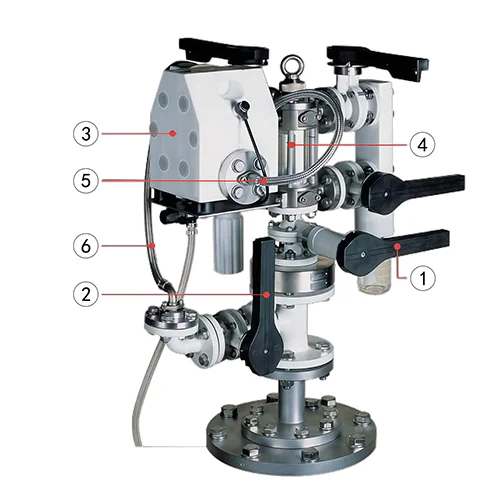

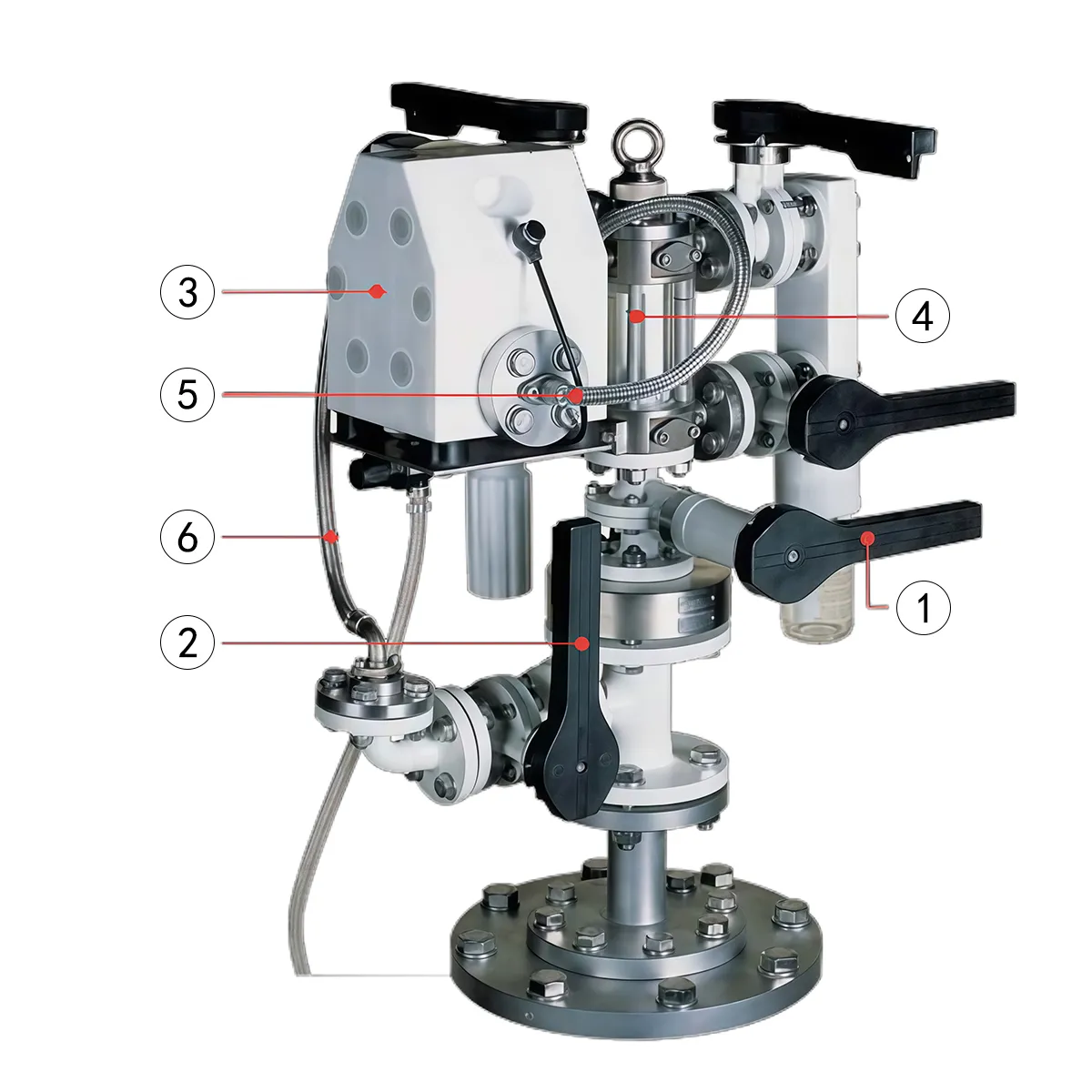

- Main valve
- Discharge valve
- Diaphragm pump
- Sight glass
- Pump suction tube
- Discharge pipe
