Gear Reducer
The gear reducer plays an important role in the drive system of a glass-lined reactor. Different reducer types can be selected according to reactor size, material properties, torque requirements, operating conditions, and site limitations. By choosing the right gear reducer, you can achieve more stable transmission, better mixing performance, and more reliable long-term operation.

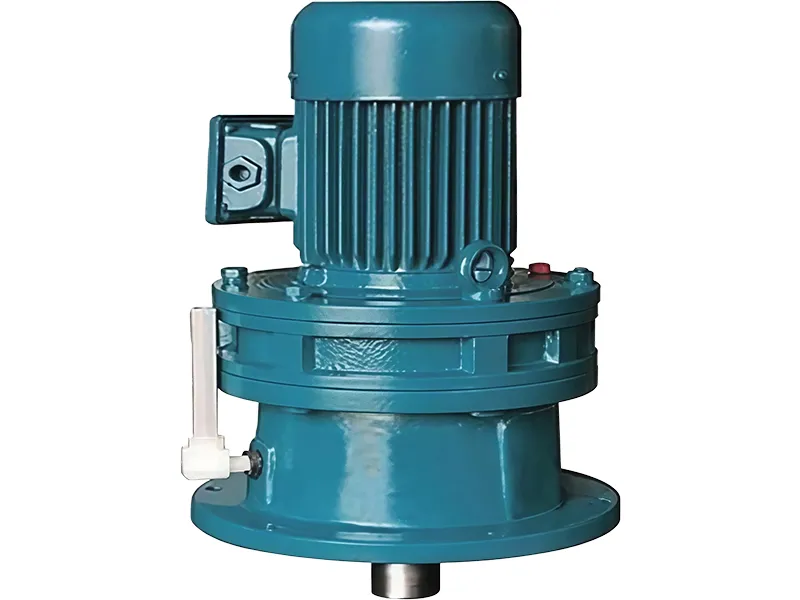

The cycloidal pinwheel reducer offers smooth transmission, high precision, compact size, and lower cost. It is generally suitable for small glass-lined equipment up to 500l.
However, the cycloidal pinwheel reducer is not suitable for excessive loads. The central shaft is more likely to fail under heavy-duty conditions, disassembly and assembly are more complicated, and the reducer is more prone to heat buildup and oil leakage, which can increase on-site maintenance costs.

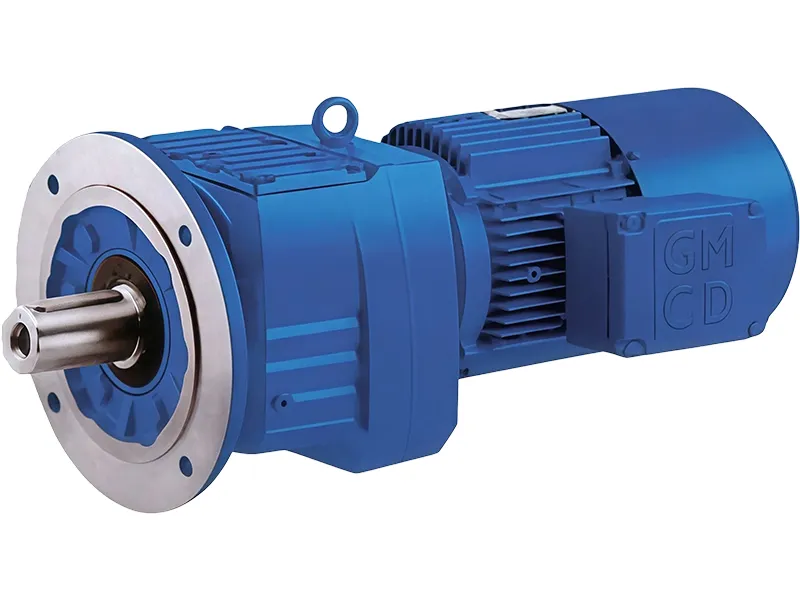

The helical gear reducer is the most widely used reducer type for glass-lined reactors. It offers good meshing performance, low vibration, low noise, stable transmission, low leakage risk, lower maintenance cost, and long service life.
The helical gear reducer is typically installed in a vertical position, although a horizontal arrangement can also be used when site height is limited. The reducer is connected to the frame through a flange connection.
According to structural type, the helical gear reducer can be divided into helical gear reducers, helical-bevel gear reducers, and parallel shaft helical gear reducers. Among these options, the standard helical gear reducer is the most commonly used.

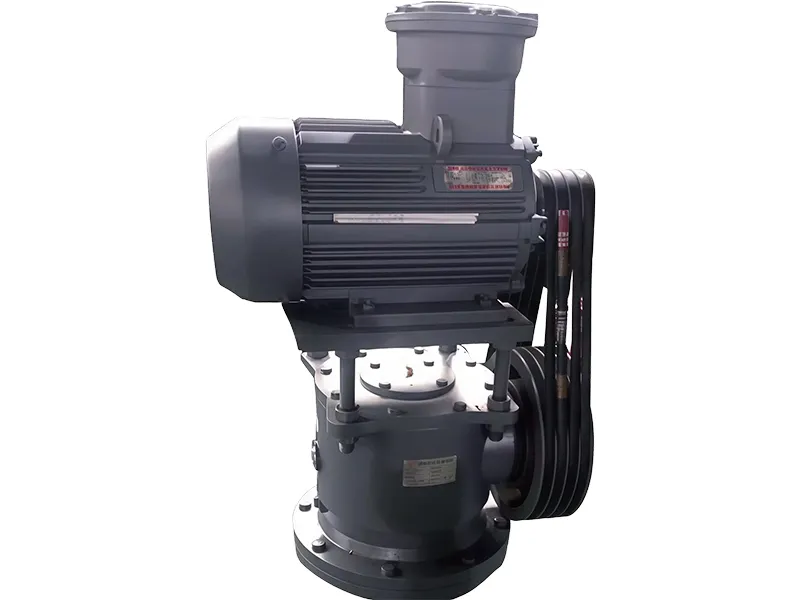

The spiral bevel reducer provides high transmission efficiency, low noise, strong overload capacity, stable running, and reliable performance.
The limitation of the spiral bevel reducer is that it uses a belt-driven structure, which can generate static electricity and does not meet stricter clean and hygienic site requirements.
The spiral bevel reducer is suitable for high-viscosity applications where the motor is more likely to overload. When the motor becomes overloaded or the viscosity is too high for rotation, the belt can slip and help prevent excessive torque from directly damaging the motor and reducer.

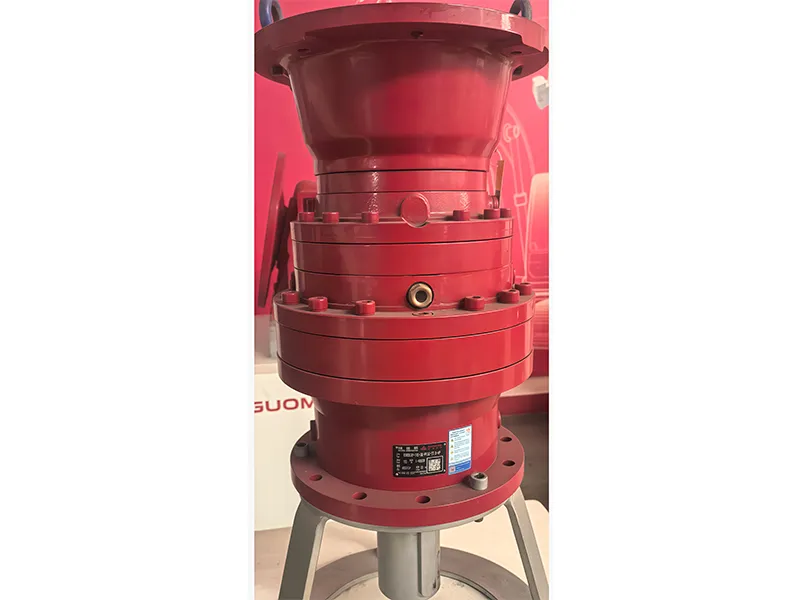

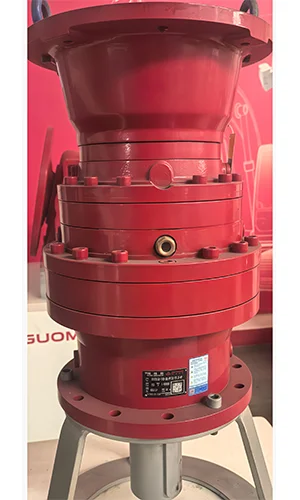

The planetary reducer is suitable for applications that require high torque and heavy-duty agitation. It offers low backlash and high precision for more accurate speed control, along with low vibration, high transmission efficiency, compact structure, and strong overload capacity.
When material blockage or sudden viscosity change occurs, the planetary reducer can help protect the motor and agitator shaft, reducing the risk of damage to the glass lining. The main disadvantage of the planetary reducer is its relatively higher cost. It is currently used less often in the domestic reactor industry but is more commonly applied in overseas markets.
The internal structure of the planetary reducer is based on the meshing of the sun gear, planetary gears, and internal ring gear. The design focuses on high rigidity, low backlash, and anti-axial-movement control, and the internal system is organized into five (5) core modules.
