Glass-Lined Components

Glass-Lined Steel Equipment Customization

Beyond our high-performance glass-lined steel reactors, storage tanks, and piping & fittings, we provide a comprehensive range of precision-engineered glass-lined components engineered to enhance your process integrity. Our full portfolio includes heat exchangers, mixing & agitation systems, columns, and dip pipes, all constructed with premium metallic substrates and high-silica glass lining. This ensures a fully seamless, corrosion-resistant environment for your entire chemical, pharmaceutical, and agrochemical production line.

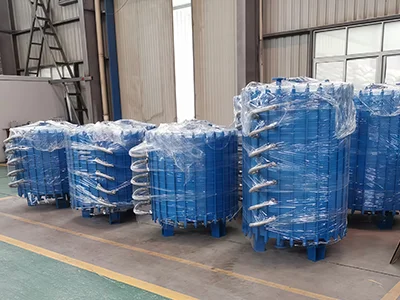

Glass-Lined Heat Exchangers

Glass-lined heat exchangers are designed for post-reaction heat transfer applications in the chemical and pharmaceutical industries, including condensation reflux, reaction acceleration, and general heat exchange. Available with heat transfer areas from 0.5 to 50 m², design pressure up to 0.6 MPa, and operating temperatures from -20°C to 200°C, they provide a reliable solution for demanding corrosive process conditions.

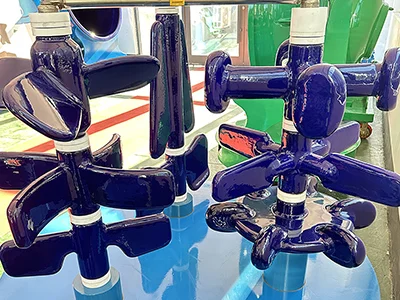

Glass-Lined Mixers and Agitators

Glass-lined mixers and agitators help you achieve more reliable mixing performance in corrosive process environments while protecting product purity and extending equipment service life. They are widely used in chemical, metallurgy, petroleum, and related industries where stable mixing, corrosion resistance, and easy cleaning are important.

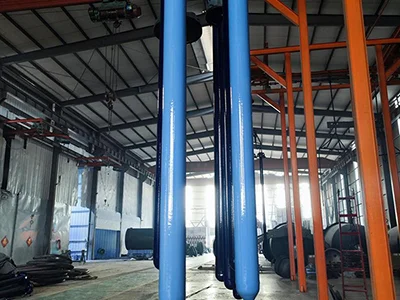

Temperature Measurement

Temperature measurement is designed for accurate temperature monitoring in glass-lined reactors and related equipment. It helps you measure process temperature reliably while maintaining good corrosion resistance and the mechanical strength needed for demanding operating conditions.

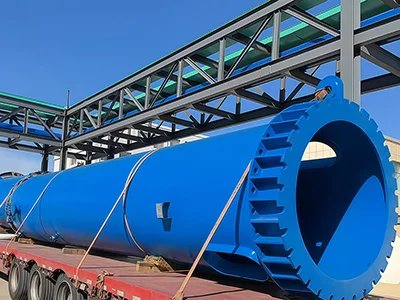

Glass-Lined Columns

The glass-lined columns range is available in nominal diameters from DN300 to DN4000. Glass-lined columns are key components in glass-lined tower systems, combining the corrosion resistance of a high-silica glass lining with the separation efficiency required for demanding process applications.

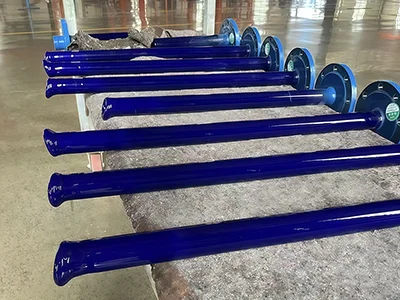

Glass-Lined Dip Pipes

The glass-lined dip pipes range is available in nominal diameters from dn25 to dn200. glass-lined dip pipes are widely used in the chemical, pharmaceutical, food, dye, agrochemical, and petroleum industries and can serve as an alternative to stainless steel or fluoropolymer-lined materials in suitable applications.

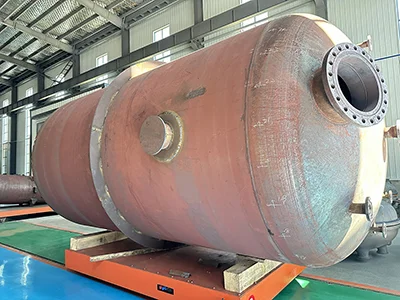

Steel Pressure Vessels

The steel pressure vessels range is available in capacities from 5l to 100000l and is manufactured in accordance with ASME and PED pressure vessel standards. Steel pressure vessels are widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing efficient and stable process solutions for different production scales.

Why Us

Certified manufacturing standards
We hold authoritative ASME (Section VIII Division 1) and CE (PED) certifications, ensuring full compliance with international safety and quality standards. This guarantees our glass-lined steel equipment meets the strict regulatory requirements of global chemical, pharmaceutical, and agrochemical clients.
In-House Enamel R&D Laboratory
Our dedicated in-house R&D center specializes in custom enamel formulations, including acid-resistant, acid-alkali resistant, high-temperature resistant, and wear resistant options. These proprietary formulas deliver exceptional durability against corrosive media, mechanical impact, and thermal shock, ensuring reliable performance in diverse operating environments.
Precision Belt Polishing Pretreatment
Prior to enameling, every steel shell undergoes rigorous precision belt polishing to thoroughly remove mill scale, pits, and surface impurities. This meticulous pretreatment process ensures superior substrate smoothness and integrity, providing an ideal, contamination-free foundation for strong and uniform enamel bonding.
Advanced Cold Spray Enameling Process
Our glass-lined equipment utilizes advanced cold spray enameling process with multiple high-temperature firing cycles. This technology ensures a thinner, more uniform, and denser enamel layer with significantly reduced risk of chipping or peeling. The controlled firing process guarantees optimal adhesion and long-term durability in the most demanding chemical processing conditions.

Multi-zone electric furnace control
The enameling furnace uses independent multi-zone control with computerized management of heating, holding, and cooling. The temperature difference inside the furnace is controlled within 5°C, helping maintain consistent firing quality.
Vertical firing process
All equipment is produced using a vertical firing process, which provides more even heating, reduces deformation, and helps maintain the overall appearance of the equipment as well as flange flatness.
Controlled slow firing curve
The firing process follows a low-temperature entry and low-temperature exit slow-firing curve. Combined with dedicated furnace tooling and controlled firing methods, this helps ensure enamel quality comparable to that of established international manufacturers.
Full-process quality management
We maintain a complete quality management system with full-process control. For glass-lined quality inspection, we apply three inspection procedures covering:
1. internal and external visible defects
2. enamel thickness
3. high-voltage spark testing
This helps ensure that delivered products meet required standards and specifications.
Custom non-standard equipment design and manufacturing
Custom design and manufacturing support is available for non-standard products. Based on different process requirements, tailored solutions can be developed for special equipment structures and agitator selection supported by CFD fluid dynamics simulation.
Strong R&D capability
We have strong research and development capacity and currently hold more than 40 national patents covering equipment tooling, products, and manufacturing processes.

ASME & CE Certified | Premium Glass-Lined Equipment Manufacturer

We engineer and customize high-performance Glass-Lined steel equipment to meet your exact process requirements across pharmaceutical, chemical, food, and agrochemical industries.
