Glass-Lined Reactors

Our ASME/PED-compliant glass-lined reactors are designed for reliable service in corrosive chemical, pharmaceutical, and agrochemical industries. Our high-silica glass lining is bonded to premium substrate materials (including carbon steel, low alloy steel, and stainless steel) via high-temperature fusion, ensuring compliance with international safety and structural standards.

Structure and Materials

Metal Substrate
Carbon steel is typically used as the base material to provide the strength and stability needed to withstand internal pressure and mechanical stress during operation.
Enamel Lining
The enamel lining is generally 0.8-2.0 mm thick and offers excellent insulation performance. Under a 20 kV high-voltage spark test, the glass layer should remain intact without breakdown. It also provides strong resistance to a wide range of organic acids, inorganic acids, and organic solvents, making it suitable for highly corrosive process conditions.

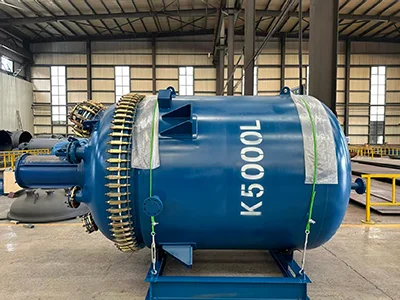

AE-Type Glass-Lined Reactor (Open Type)

The AE-type glass-lined reactor (open type) is available in capacities from AE50L to AE5000L and is manufactured in accordance with ASME and PED pressure vessel standards.

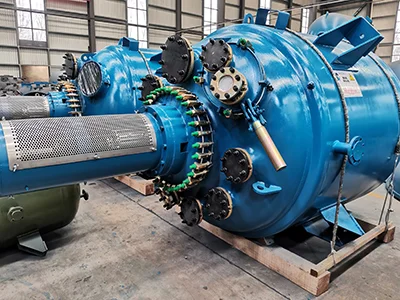

CE-Type Glass-Lined Reactor (Closed Type)

The CE-type glass-lined reactor (closed type) is available in capacities from CE3000L to CE32000L and is manufactured in accordance with ASME and PED pressure vessel standards.

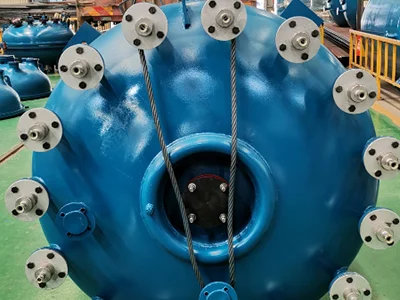

Glass-Lined Reactor with Electric Heating

The glass-lined reactor with electric heating is available in capacities from 63L to 10000L and is manufactured in accordance with ASME and PED pressure vessel standards.

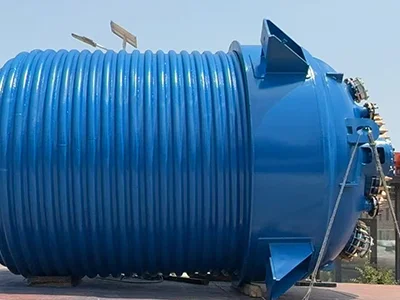

Half-Pipe Jacketed Reactor

The half-pipe jacketed reactor is available in capacities from 630L to 40000L and is manufactured in accordance with ASME and PED pressure vessel standards.

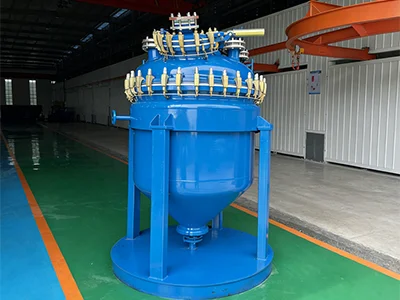

Conical-Bottom Reactor

The conical-bottom reactor is available in capacities from 63l to 40000l and is manufactured in accordance with ASME and PED pressure vessel standards.

High Pressure Glass-Lined Reactor

The high pressure glass-lined reactor is available in capacities from 63L to 40000L and is manufactured in accordance with ASME and PED pressure vessel standards.

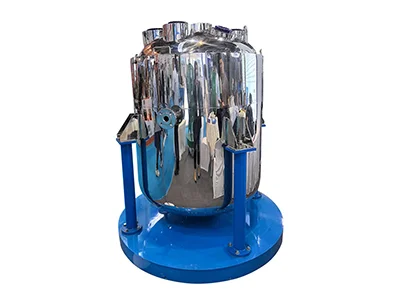

GMP Reactor

The GMP reactor is available in capacities from 63L to 40000L and is manufactured in accordance with ASME and PED pressure vessel standards.

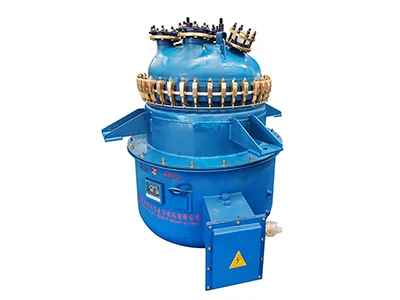

Glass-Lined Reactor with Infrared Heating

The glass-lined reactor with infrared heating is available in capacities from 63L to 40000L and is manufactured in accordance with ASME and PED pressure vessel standards.

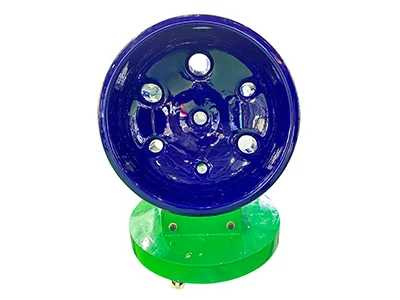

Glass-Lined Reactor Cover

The glass-lined reactor cover is available in the following specifications: AE63L, AE100L, AE160L, AE250L, AE400L, AE630L, AE1000L, AE1600L, AE2500L, AE4000L, and AE5000L.

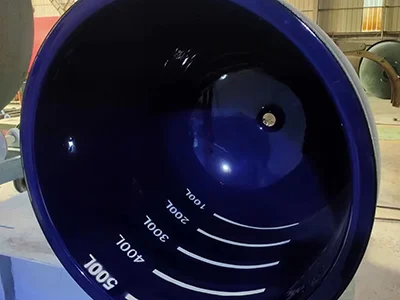

Customized Glass-Lined Reactor

The customized glass-lined reactor is available in capacities from 5L to 100000L and is manufactured in accordance with ASME and PED pressure vessel standards.

Features

Working Pressure
Typical working pressure ranges from atmospheric pressure to 1.0 MPa.
Operating Temperature
The standard operating temperature range is -40°C to 200°C, with thermal shock resistance of ≥200°C.
Capacity Range
Glass-Lined Reactors are available in capacities ranging from a few liters to tens of thousands of liters, making them suitable for both small-scale production and large industrial operations.
Heating Options
Available configurations include water-heated Glass-Lined Reactors, steam-heated Glass-Lined Reactors, electric-heated Glass-Lined Reactors, thermal oil-heated reactors, and far-infrared heated Glass-Lined Reactors.

Applications

Glass-Lined Reactors are widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries. They are well suited for processes such as hydrolysis, neutralization, crystallization, mixing, and emulsification, where corrosion resistance, process reliability, and ease of cleaning are important.

Why Us

Certified manufacturing standards
We hold authoritative ASME (Section VIII Division 1) and CE (PED) certifications, ensuring full compliance with international safety and quality standards. This guarantees our glass-lined steel equipment meets the strict regulatory requirements of global chemical, pharmaceutical, and agrochemical clients.
In-House Enamel R&D Laboratory
Our dedicated in-house R&D center specializes in custom enamel formulations, including acid-resistant, acid-alkali resistant, high-temperature resistant, and wear resistant options. These proprietary formulas deliver exceptional durability against corrosive media, mechanical impact, and thermal shock, ensuring reliable performance in diverse operating environments.
Precision Belt Polishing Pretreatment
Prior to enameling, every steel shell undergoes rigorous precision belt polishing to thoroughly remove mill scale, pits, and surface impurities. This meticulous pretreatment process ensures superior substrate smoothness and integrity, providing an ideal, contamination-free foundation for strong and uniform enamel bonding.
Advanced Cold Spray Enameling Process
Our glass-lined equipment utilizes advanced cold spray enameling process with multiple high-temperature firing cycles. This technology ensures a thinner, more uniform, and denser enamel layer with significantly reduced risk of chipping or peeling. The controlled firing process guarantees optimal adhesion and long-term durability in the most demanding chemical processing conditions.

Multi-zone electric furnace control
The enameling furnace uses independent multi-zone control with computerized management of heating, holding, and cooling. The temperature difference inside the furnace is controlled within 5°C, helping maintain consistent firing quality.
Vertical firing process
All equipment is produced using a vertical firing process, which provides more even heating, reduces deformation, and helps maintain the overall appearance of the equipment as well as flange flatness.
Controlled slow firing curve
The firing process follows a low-temperature entry and low-temperature exit slow-firing curve. Combined with dedicated furnace tooling and controlled firing methods, this helps ensure enamel quality comparable to that of established international manufacturers.
Full-process quality management
We maintain a complete quality management system with full-process control. For glass-lined quality inspection, we apply three inspection procedures covering:
1. internal and external visible defects
2. enamel thickness
3. high-voltage spark testing
This helps ensure that delivered products meet required standards and specifications.
Custom non-standard equipment design and manufacturing
Custom design and manufacturing support is available for non-standard products. Based on different process requirements, tailored solutions can be developed for special equipment structures and agitator selection supported by CFD fluid dynamics simulation.
Strong R&D capability
We have strong research and development capacity and currently hold more than 40 national patents covering equipment tooling, products, and manufacturing processes.
