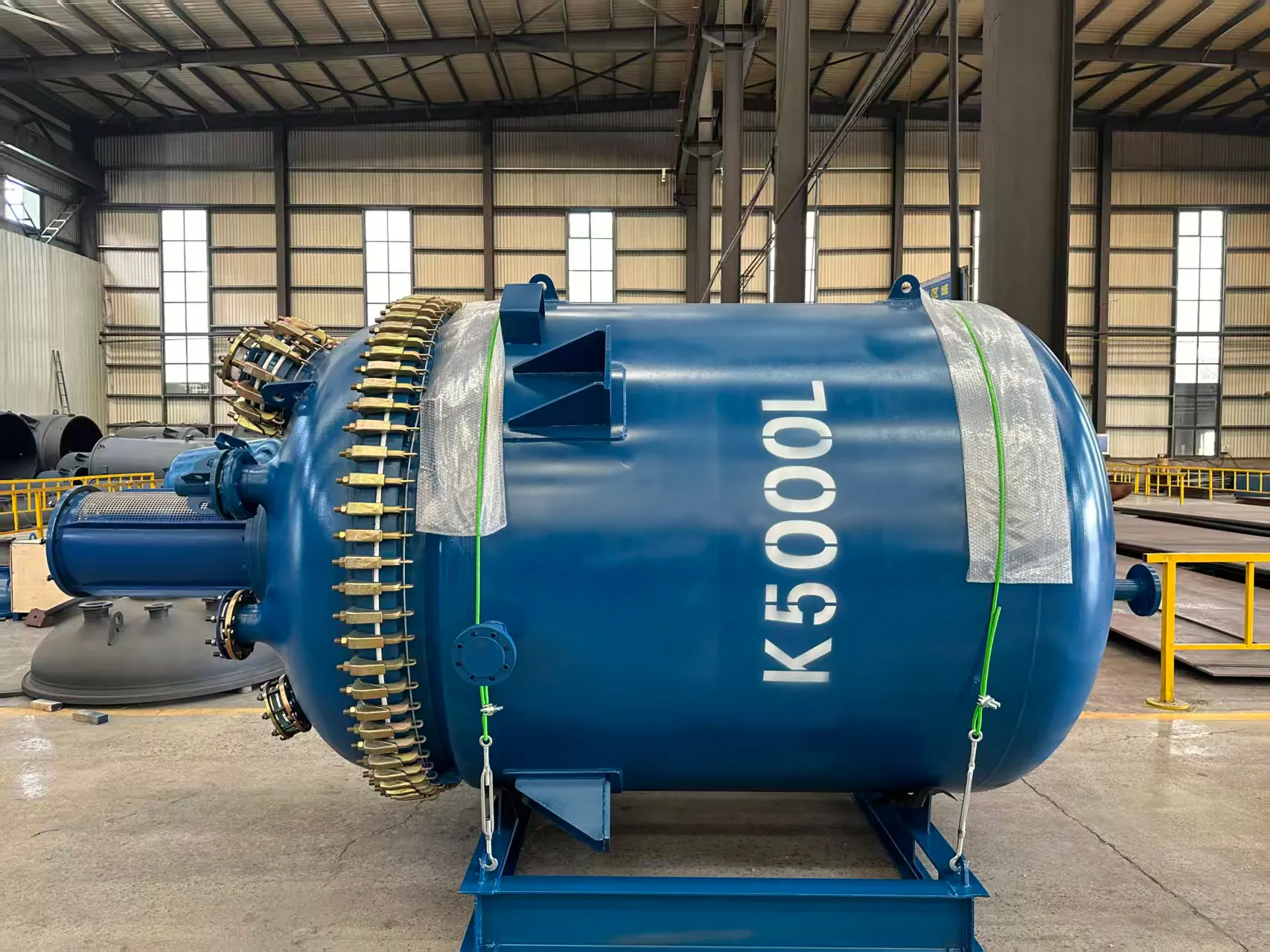

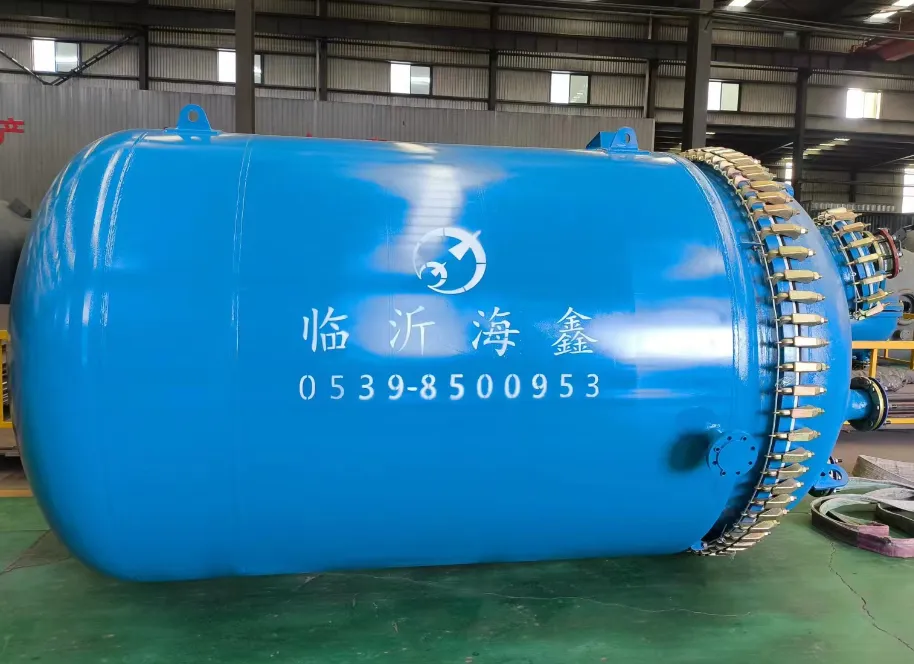

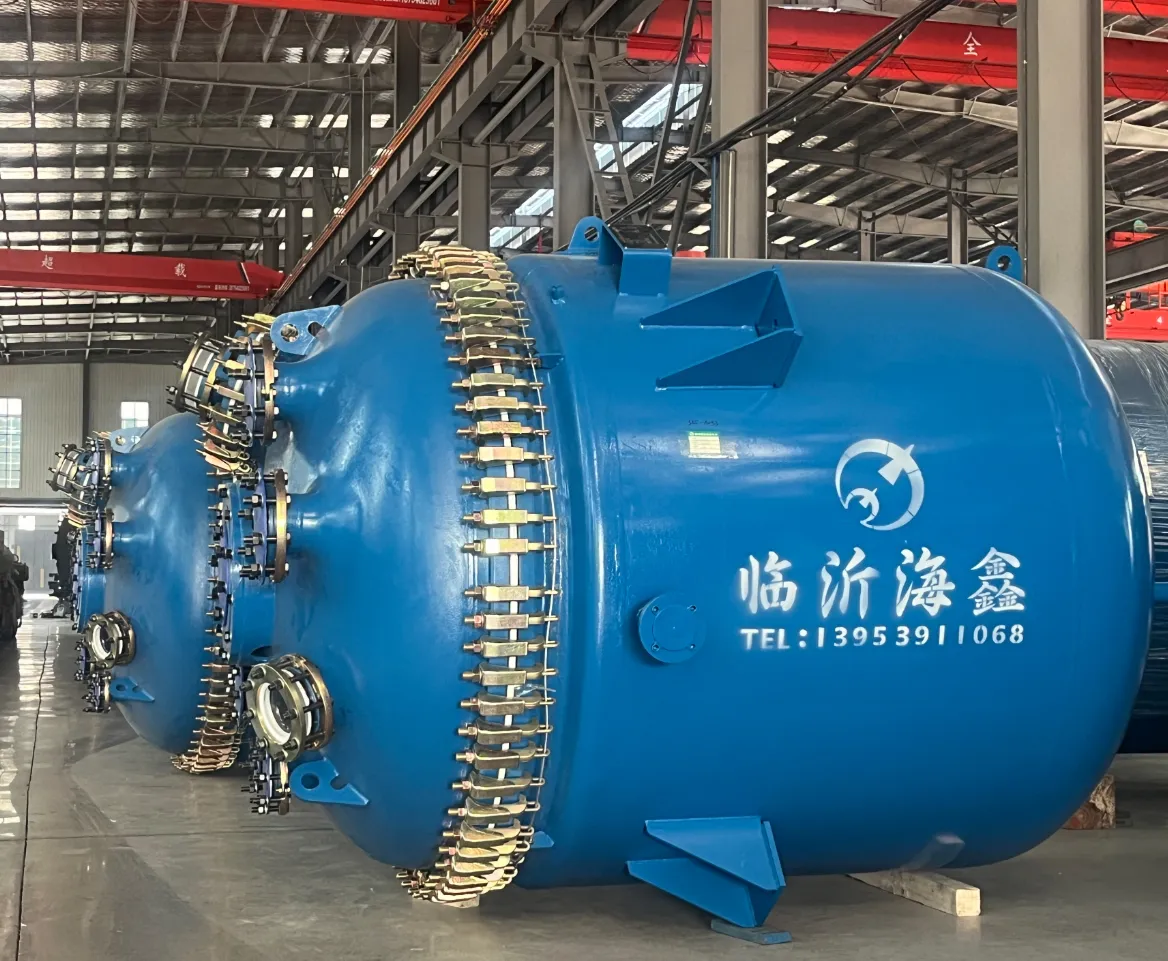

AE-Type Glass-Lined Reactor (Open Type)

The AE-type glass-lined reactor (open type) is available in capacities from AE50L to AE5000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing dependable process equipment for a wide range of production needs.

Request a Quote →

The open type glass-lined reactor is mainly composed of a vessel body, vessel cover, agitator, and drive unit. The inner surface is lined with glass enamel to provide reliable corrosion resistance, while the outer metal jacket allows heating or cooling for efficient heat transfer. The agitation system includes the agitator, reducer, motor, frame, and mechanical seal, which work together to promote material mixing. A temperature measurement system monitors the internal process temperature in real time, and the drive unit transfers motor power to the agitator for stable operation.

Structural and Maintenance Advantages
  • Easy disassembly and efficient maintenance
    The vessel cover and vessel body are connected by clamps and sealing gaskets, allowing quick separation for internal inspection, agitator or seal replacement, and removal of adhered materials. This helps reduce downtime and lower maintenance costs.
  • Independent maintenance of components
    The vessel cover and nozzles, such as the feed port and temperature measuring port, can be removed and serviced separately without dismantling the entire equipment, which reduces maintenance difficulty and workload.
  • Flexible agitator configuration
    The reactor can be fitted with different agitator types, including anchor agitators, impeller agitators, and paddle agitators. These can be selected according to material viscosity and process requirements, making the reactor suitable for hydrolysis, neutralization, crystallization, and emulsification duties.
Technical Specifications

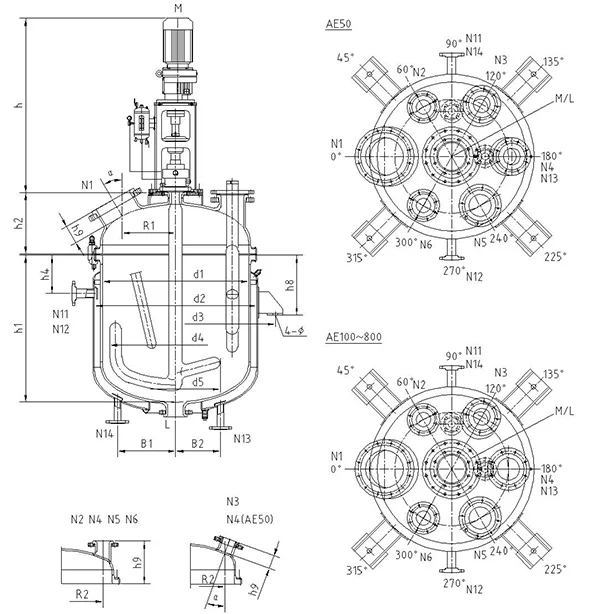

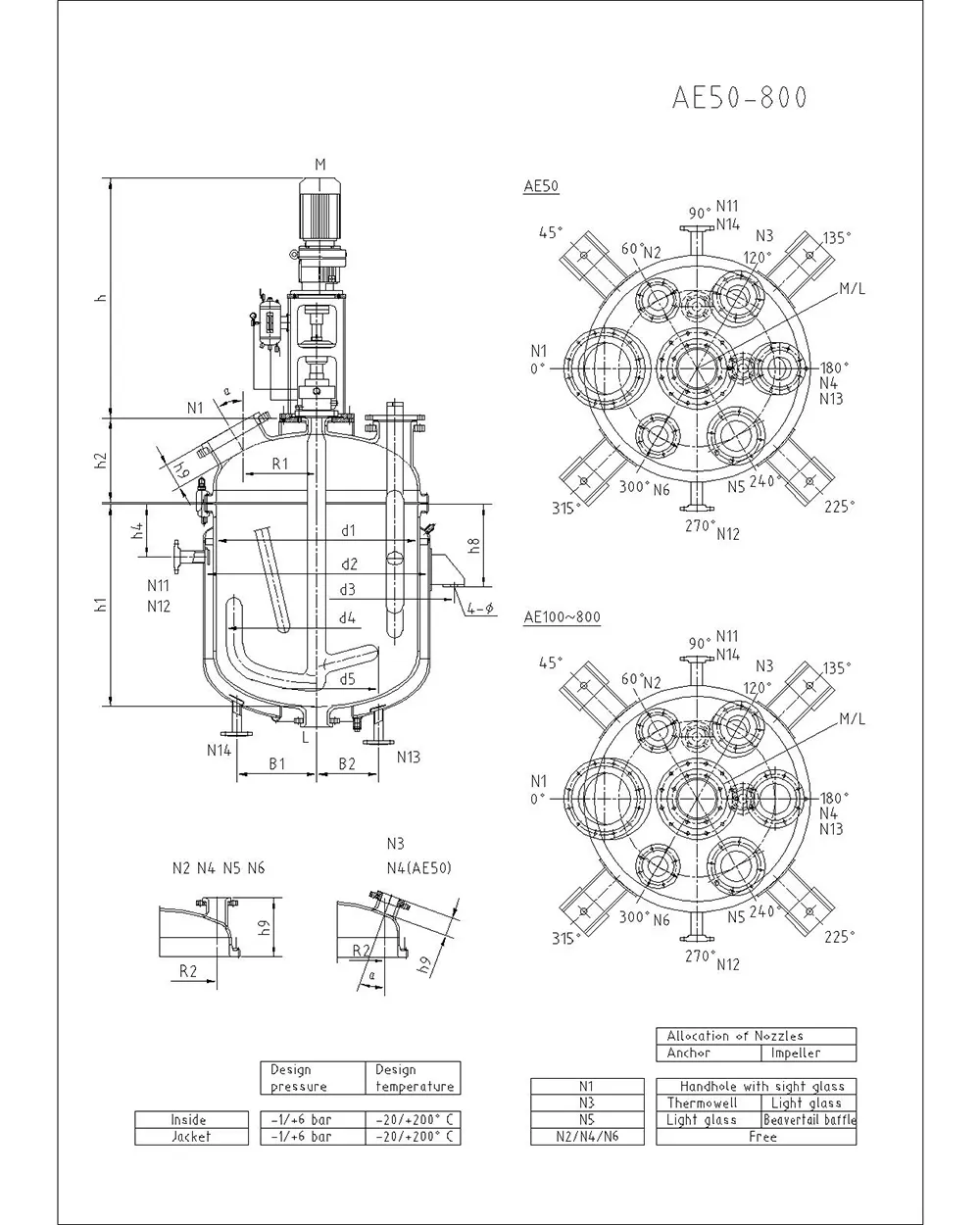

Technical Specifications
Item Unit AE50 AE100 AE200 AE300 AE400 AE500 AE800
Nominal Capacity L 50 100 200 300 400 500 800
Total Capacity L 72 130 251 375 475 598 889
Jacket Capacity L 27 41 68 89 111 127 162
Heating Area (With Jacket) m² 0.54 0.83 1.42 1.92 2.42 2.74 3.72
Approx. Weight (Note) kg 280 380 530 650 720 850 1190
Main Dimension （mm） d1 500 600 700 800 800 900 1000
d2 600 700 800 900 900 1000 1100
d3 868 986 1099 1200 1200 1332 1437
d4 420 520 620 720 720 810 880
d5 300 360 420 480 480 540 600
h1 400 500 700 800 1000 1000 1200
h2 270 305 340 365 365 390 410
h4 210 220 230 230 230 260 260
h8 305 360 400 400 400 450 450
R1 200 240 280 280 280 340 380
R2 210 240 280 310 310 350 380
B1 200 240 240 240 240 270 270
B2 200 240 240 240 240 270 270
φ 24 24 24 24 24 30 30
Nozzle Dimensions on Vessel （mm） M DN 50 50 80 80 80 125 125
L 80 80 80 80 80 100 100
N1 DN/h9 α 100/110 28 100/110
26 		150/115
26 		150/115
24 		150/115
24 		200/120
24 		200/120
24
N3 80/100
20 		80/100
12 		80/100
12 		80/100
12 		80/100
12 		100/100
12 		100/100
12
N4 80/100
20 		80/280 80/300 100/320 100/320 125/340 150/360
N2 DN/h9 40/240 50/270 50/290 80/320 80/320 100/340 100/360
N5 50/240 80/280 80/300 80/320 80/320 100/340 100/360
N6 40/240 50/270 50/290 80/320 80/320 100/340 100/360
Jacket Nozzle Dimensions (mm)
 N11 DN 25 25 25 25 0 32 32
N12 25 25 25 25 0 32 32
N13 25 25 25 25 0 32 32
N14 25 25 25 25 0 32 32
Drive Section Agitator shaft diameter 40 40 50 50 50 60 60
h For details, see the drawing(s)
Note: The approximate weight does not include the drive section or the weight of the glass lining.
α: Nozzle orientation angle.

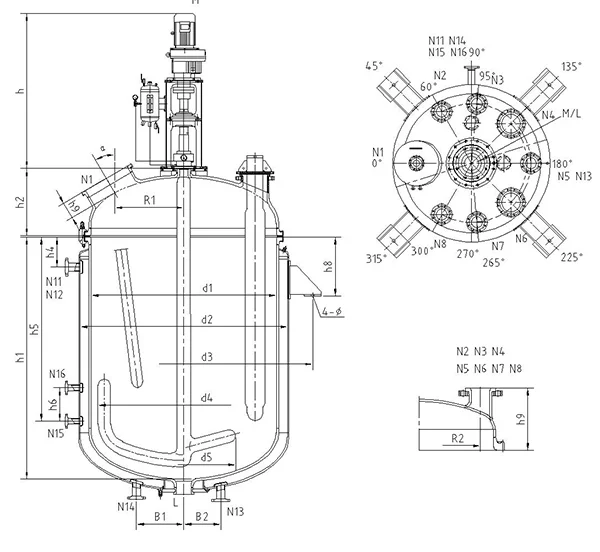

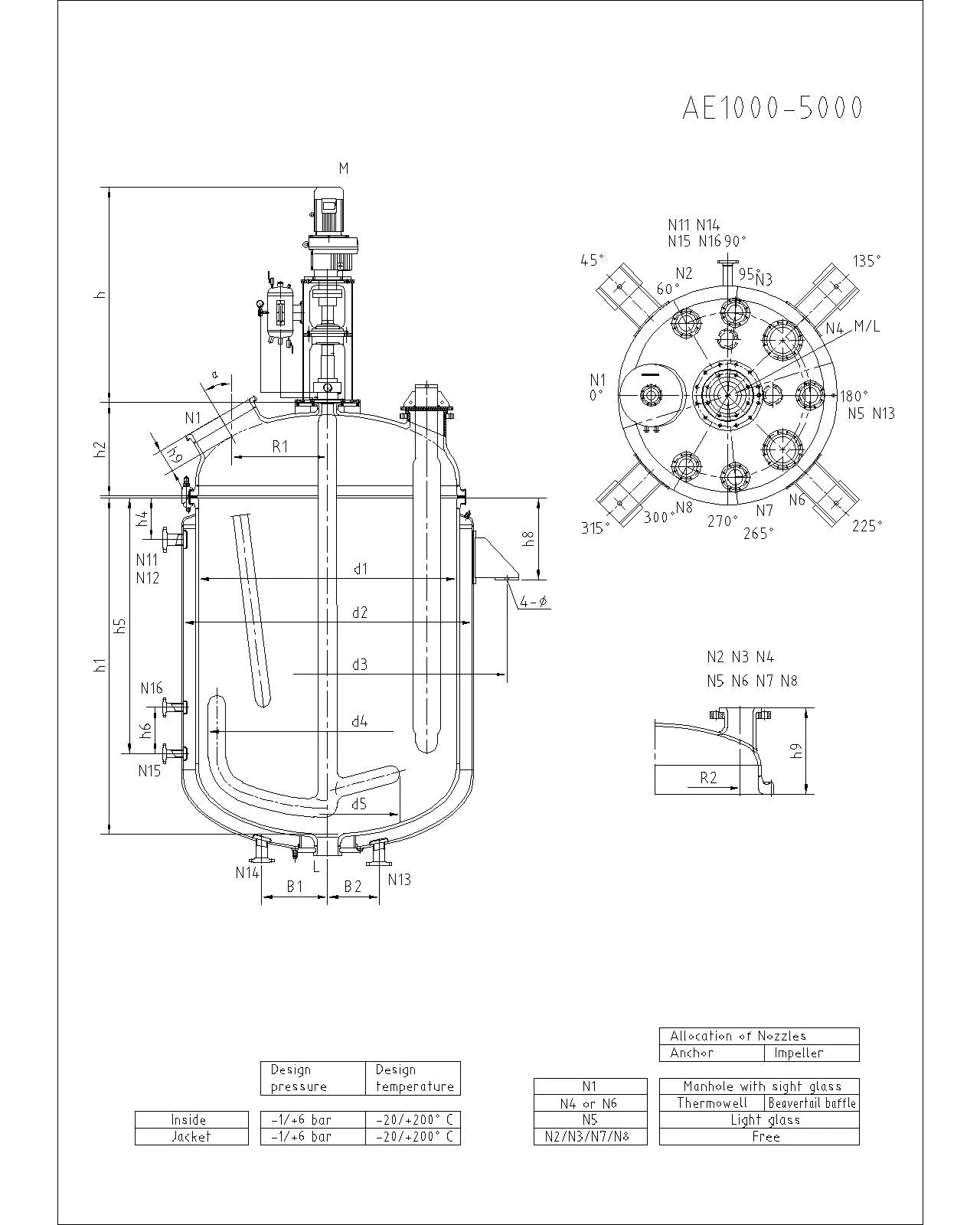

Technical Specifications
Item Unit AE1000 AE1500 AE2000 AE3000 AE4000 AE5000
Nominal Capacity L 1000 1500 2000 3000 4000 5000
Total Capacity L 1244 1714 2179 3351 4356 5422
Jacket Capacity L 189 386 480 594 751 837
Heating Area (With Jacket) m² 4.42 5.57 7 9.03 12 13.25
Approx. Weight (Note) kg 1540 2030 2290 3150 3790 4760
Main Dimensions (mm) d1 1200 1300 1300 1600 1600 1750
d2 1300 1450 1450 1750 1750 1900
d3 1637 1915 1915 2221 2221 2412
d4 1080 1180 1180 1440 1440 1580
d5 720 720 720 960 960 1100
h1 1200 1400 1750 1800 2300 2400
h2 530 560 560 630 635 675
h4 270 320 320 320 320 320
h5 950 1300 1300 1750 1850
h6 400 500 600
h8 500 600 600 600 600 700
R1 420 460 460 600 600 630
R2 450 460 460 625 625 650
B1 280 350 350 500 500 500
B2 280 280 280 280 280 350
φ 30 30 30 30 30 30
Nozzle Dimensions On Vessel (mm) M DN 125 150 150 150 200 200
L 100 100 100 1001 1001 150
N1 DN/h9 α 400×300
110/28 		400×300
110/28 		400×300
110/28 		400×300
120/30 		400×300
120/30 		400×300
120/28
N2 DN/h9 100/450 100/490 100/490 100/520 100/520 150/580
N3 100/450 100/490 100/490 100/520 100/520 150/580
N4 200/480 200/520 200/520 200/560 200/560 250/620
N5 100/450 100/490 100/490 100/520 100/520 150/580
N6 200/480 200/520 200/520 200/560 200/560 250/620
N7 100/450 100/490 100/490 100/520 100/520 150/580
N8 100/450 100/490 100/490 100/520 100/520 150/580
Jacket Nozzle Dimensions (mm) N11 DN 40 40 40 50 50 65
N12 40 40 40 50 50 65
N13 40 40 40 50 50 65
N14 40 40 40 50 50 65
N15 50 50 50 50 65
N16 50 50 65
Drive Section Agitator Shaft Diameter 60 80 80 100 100 100
h For details, see the drawing(s)
Note: The approximate weight does not include the drive section or the weight of the glass lining.
