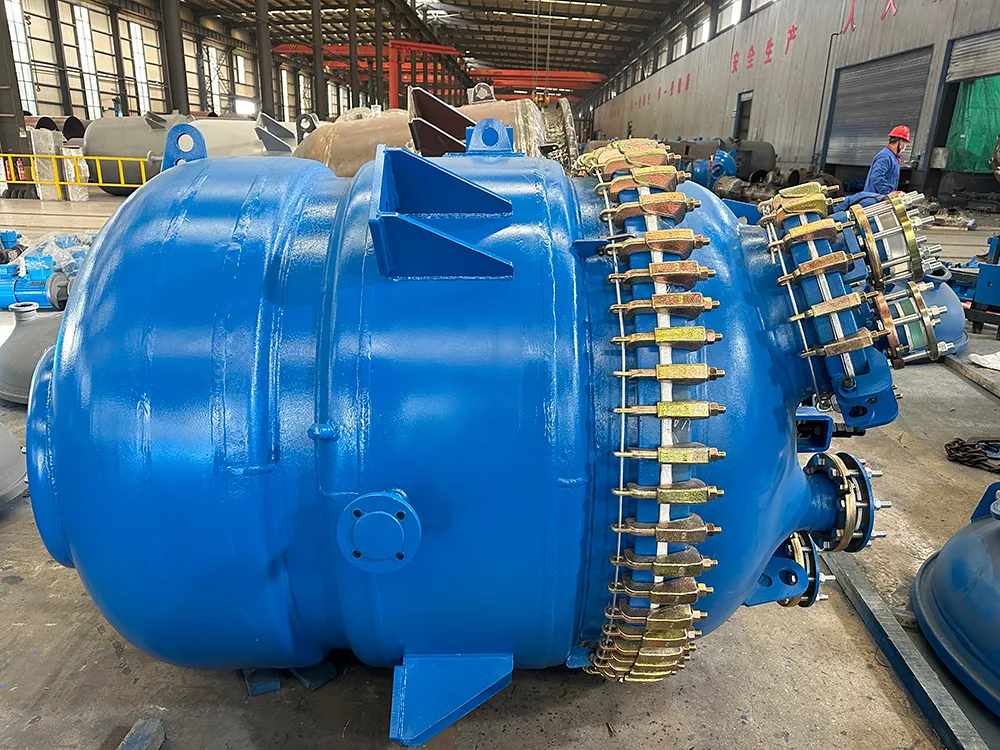

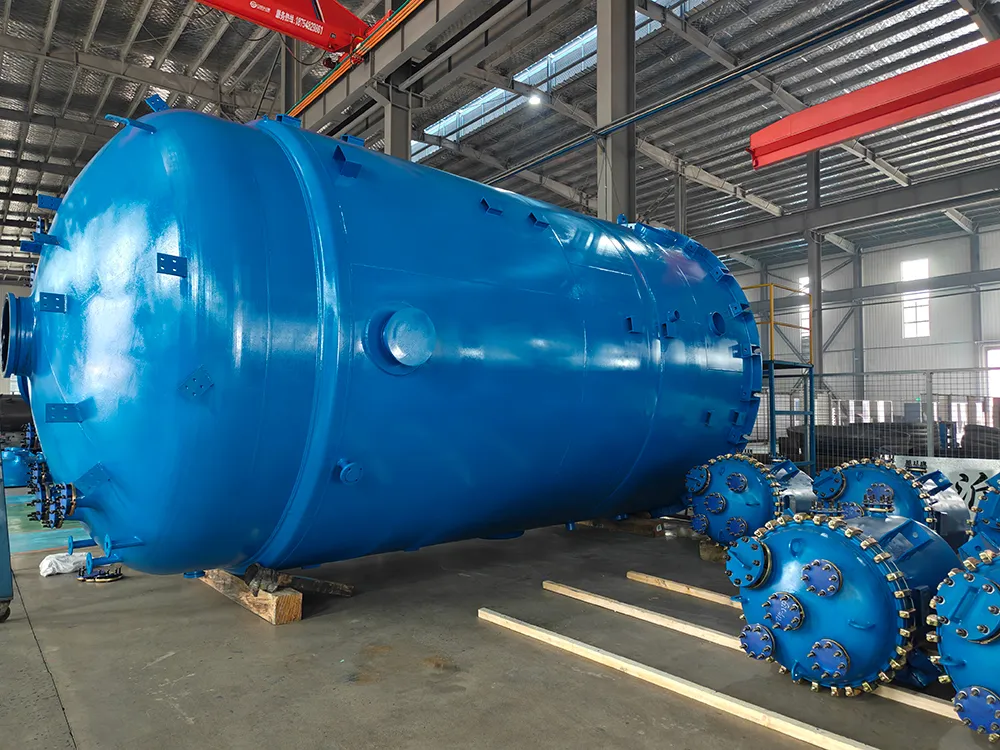

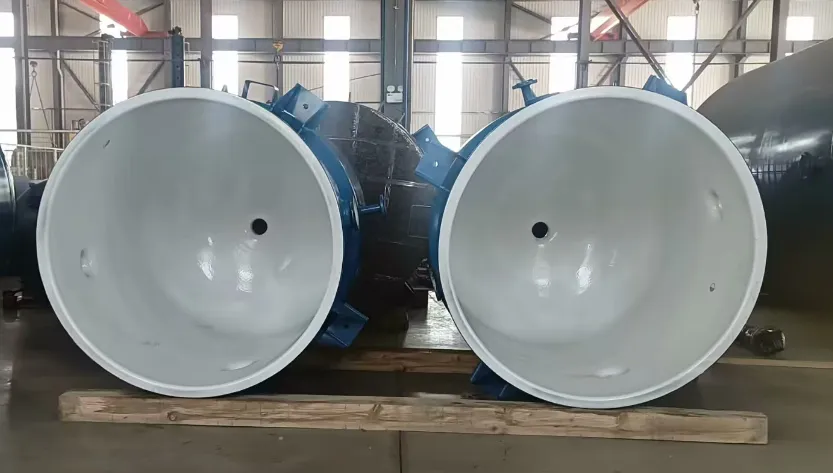

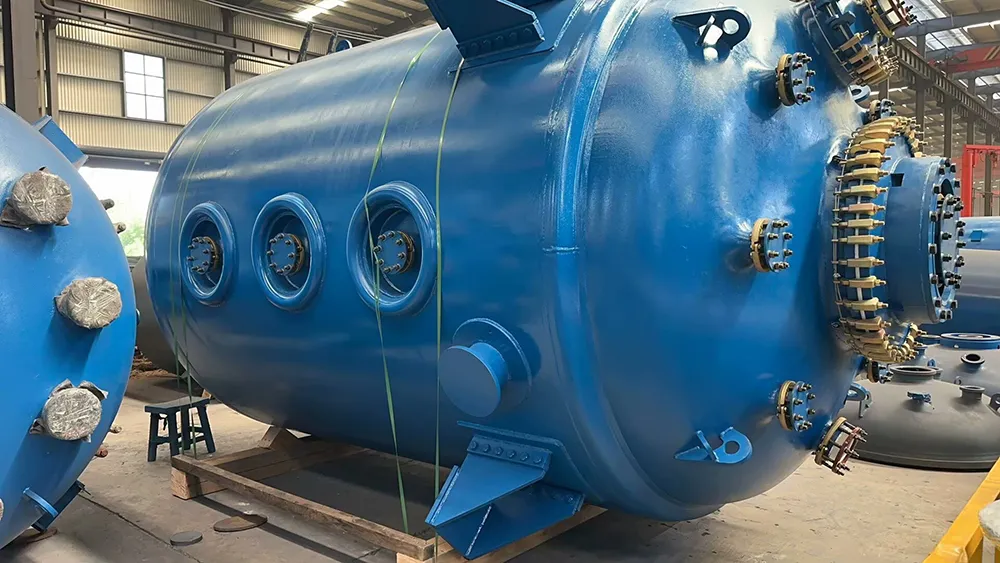

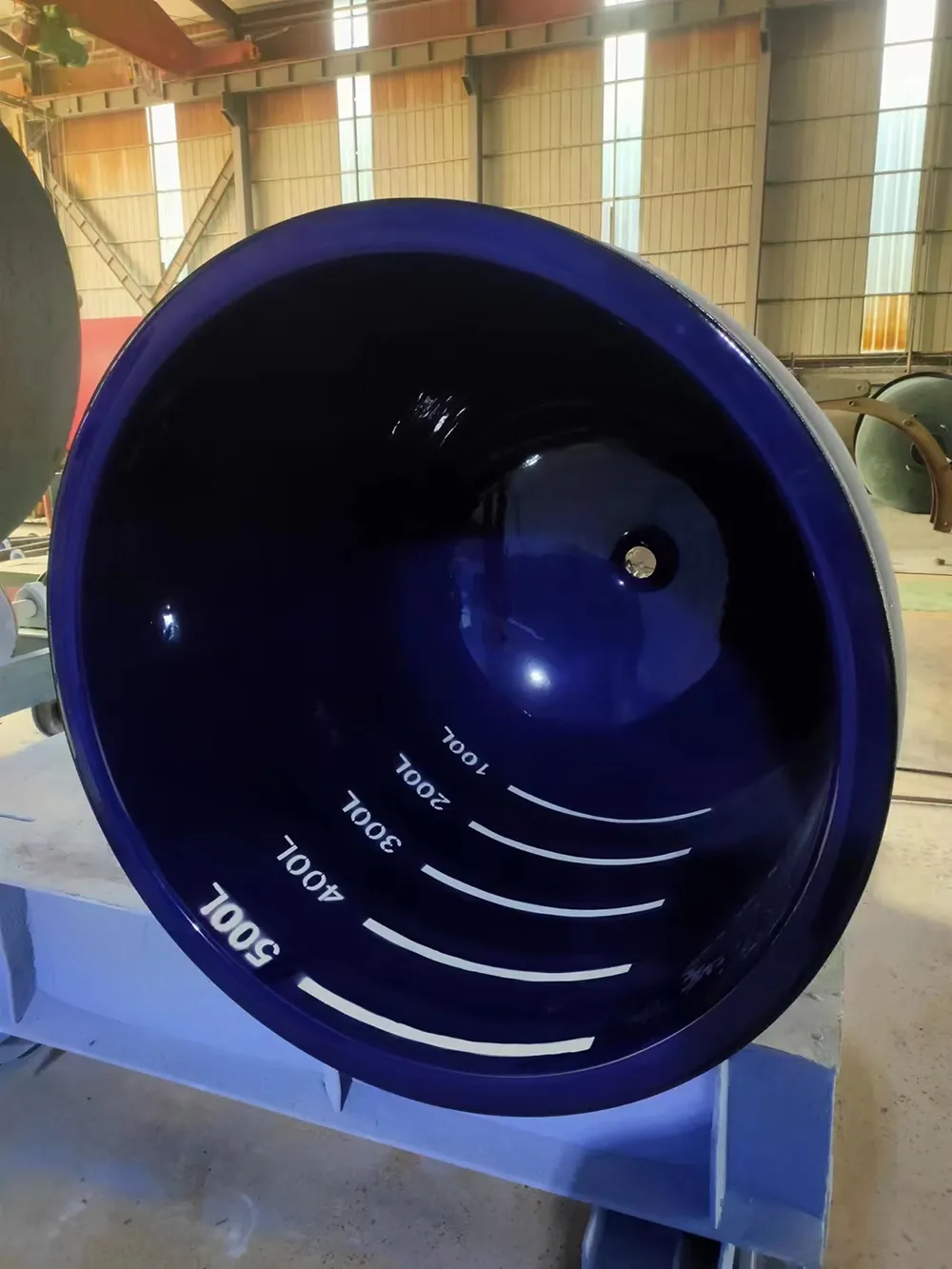

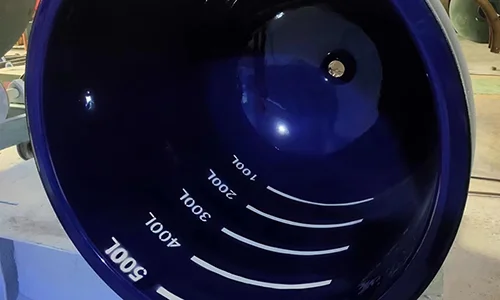

Customized Glass-Lined Reactor

Glass-Lined Equipment Customization

ASTM-Standard Steel Materials Carbon steel, alloy steel, stainless steel
Enhanced Enamel Formulations Superior resistance to corrosion, high temperature, acids and alkalis
Precision-Controlled Manufacturing Cold spray with curve firing for uniform enamel thickness and density

The customized glass-lined reactor is available in capacities from 5L to 100000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing efficient and stable reaction solutions for production requirements of different scales.

Request a Quote →

Different equipment solutions can be designed according to your specific process requirements. These may include special capacities, special structures, special pressure ratings, special process nozzles, special heat transfer methods, special mixing requirements, and special enamel performance.

Features

Flexible customization based on process needs
Core equipment parameters can be customized as required, with capacities ranging from 5L to 100000L to match different production scales and operating requirements.
Multiple heating and cooling options
The reactor can be configured with different heating or cooling methods, including far-infrared heating, half-pipe jacket design, and high-pressure jacket design, allowing better adaptation to specific process conditions.
Optional integrated functional components
Special components such as sterile sampling ports, magnetic drive agitation systems, and online monitoring instruments can be integrated according to your application requirements.
Optimized design for special media
For demanding media such as highly corrosive or high-viscosity materials, the lining process and structural design can be optimized to improve equipment compatibility with your process.
Accurate matching to your production process
By combining customized structure, function, and enamel performance, the reactor can be designed to match your production process more precisely and support differentiated manufacturing needs.

Contact Us

Ready to Start A Project?

Please contact Lante for custom glass-lined steel equipment designed to meet your specific needs.

Related Products

Glass-Lined Reactors AE-Type Glass-Lined Reactor (Open Type)

Glass-Lined Reactors CE-Type Glass-Lined Reactor (Closed Type)

Glass-Lined Reactors Glass-Lined Reactor with Electric Heating

Why Us

Certified manufacturing standards
We hold authoritative ASME (Section VIII Division 1) and CE (PED) certifications, ensuring full compliance with international safety and quality standards. This guarantees our glass-lined steel equipment meets the strict regulatory requirements of global chemical, pharmaceutical, and agrochemical clients.
In-House Enamel R&D Laboratory
Our dedicated in-house R&D center specializes in custom enamel formulations, including acid-resistant, acid-alkali resistant, high-temperature resistant, and wear resistant options. These proprietary formulas deliver exceptional durability against corrosive media, mechanical impact, and thermal shock, ensuring reliable performance in diverse operating environments.
Advanced Cold Spray Enameling Process
Our glass-lined equipment utilizes advanced cold spray enameling process with multiple high-temperature firing cycles. This technology ensures a thinner, more uniform, and denser enamel layer with significantly reduced risk of chipping or peeling. The controlled firing process guarantees optimal adhesion and long-term durability in the most demanding chemical processing conditions.

Precision Belt Polishing Pretreatment
Prior to enameling, every steel shell undergoes rigorous precision belt polishing to thoroughly remove mill scale, pits, and surface impurities. This meticulous pretreatment process ensures superior substrate smoothness and integrity, providing an ideal, contamination-free foundation for strong and uniform enamel bonding.
Multi-zone electric furnace control
The enameling furnace uses independent multi-zone control with computerized management of heating, holding, and cooling. The temperature difference inside the furnace is controlled within 5°C, helping maintain consistent firing quality.
Vertical firing process
All equipment is produced using a vertical firing process, which provides more even heating, reduces deformation, and helps maintain the overall appearance of the equipment as well as flange flatness.
Controlled slow firing curve
The firing process follows a low-temperature entry and low-temperature exit slow-firing curve. Combined with dedicated furnace tooling and controlled firing methods, this helps ensure enamel quality comparable to that of established international manufacturers.
Full-process quality management
We maintain a complete quality management system with full-process control. For glass-lined quality inspection, we apply three inspection procedures covering:
1. internal and external visible defects
2. enamel thickness
3. high-voltage spark testing
This helps ensure that delivered products meet required standards and specifications.
Custom non-standard equipment design and manufacturing
Custom design and manufacturing support is available for non-standard products. Based on different process requirements, tailored solutions can be developed for special equipment structures and agitator selection supported by CFD fluid dynamics simulation.
Strong R&D capability
We have strong research and development capacity and currently hold more than 40 national patents covering equipment tooling, products, and manufacturing processes.
