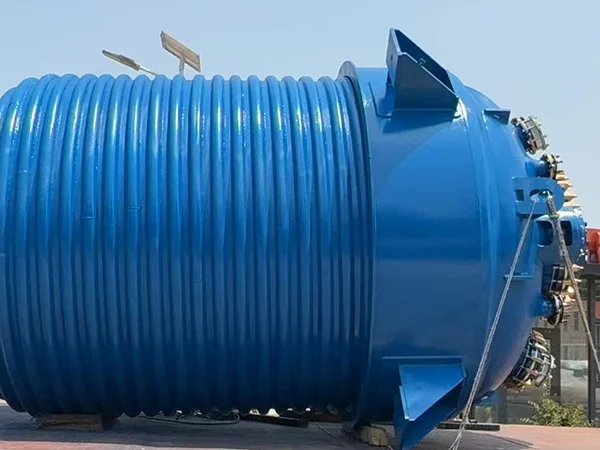

Half-Pipe Jacketed Reactor, Glass-Lined Reactor Vessel
The half-pipe jacketed reactor is available in capacities from 630L to 40000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing an efficient and stable reaction solution for different production requirements.
Request a Quote →
An external half-pipe jacket heat transfer structure gives the half-pipe jacketed reactor both higher pressure resistance and fast heat transfer performance. It is well suited for chemical and pharmaceutical processes that require medium- to high-pressure operation, precise temperature control, and rapid heating or cooling.
Features
- Fast heat transfer performance
The half-pipe jacket structure provides high flow velocity, strong turbulence, and no dead zones in heat exchange, making it especially suitable for rapid temperature changes and high-temperature operating conditions. - Strong jacket pressure capability
Designed in accordance with piping standards, the jacket can typically withstand pressures of up to 2.0 MPa, meeting the requirements of medium- and high-pressure production processes. - Stable process temperature control
The reactor is suitable for use with liquid heat transfer media, offering a fast temperature response and more stable process control. - Reliable manufacturing quality
With strict welding and manufacturing standards, the equipment offers stronger reliability and longer service life, although the manufacturing cost is relatively higher.
