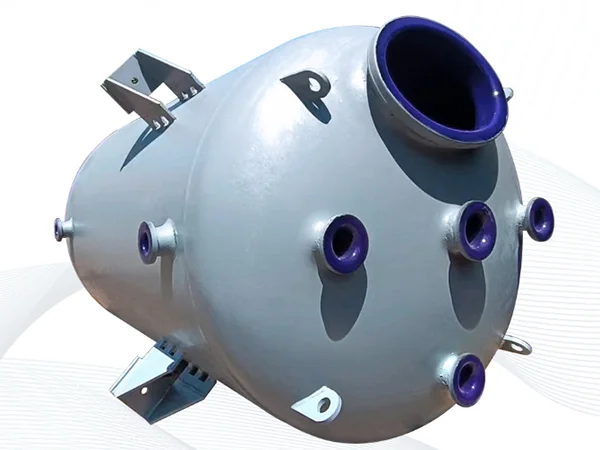

Glass-Lined Storage Tank, F Type (Closed Type)

The glass-lined storage tank, F type (closed type) is available in capacities from F500L to F40000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing an efficient and stable storage solution for different production scales.

Request a Quote →

Featuring a vertical closed-top structure with an integrated upper head, the glass-lined storage tank, F type offers excellent corrosion resistance and hygienic performance. It is suitable for the safe storage of strongly corrosive media and high-cleanliness materials.

Features
  • Integrated upper head structure
    The upper head and cylindrical shell are formed as an integral structure, providing reliable sealing performance and making the tank suitable for long-term stable storage.
  • Durable glass lining
    The enamel lining thickness is 0.8-2.0 mm and can withstand a 20 kV high-voltage spark test without breakdown.
  • Suitable for corrosive and sanitary media
    The tank can safely store a wide range of acids, alkalis, organic solvents, and sanitary-grade materials, while also offering good non-stick performance and product preservation.
  • Optional configurations for different duties
    The tank can be equipped with a jacket or half-pipe heating and insulation structure, along with accessories such as a level gauge, bottom outlet valve, and lifting lugs, to meet different operating requirements.

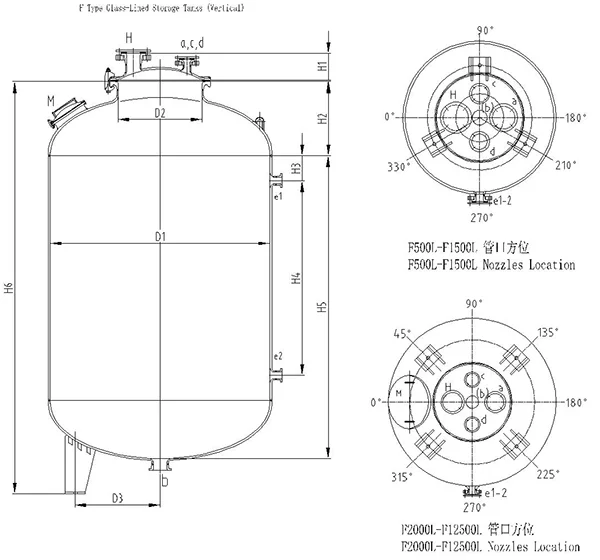

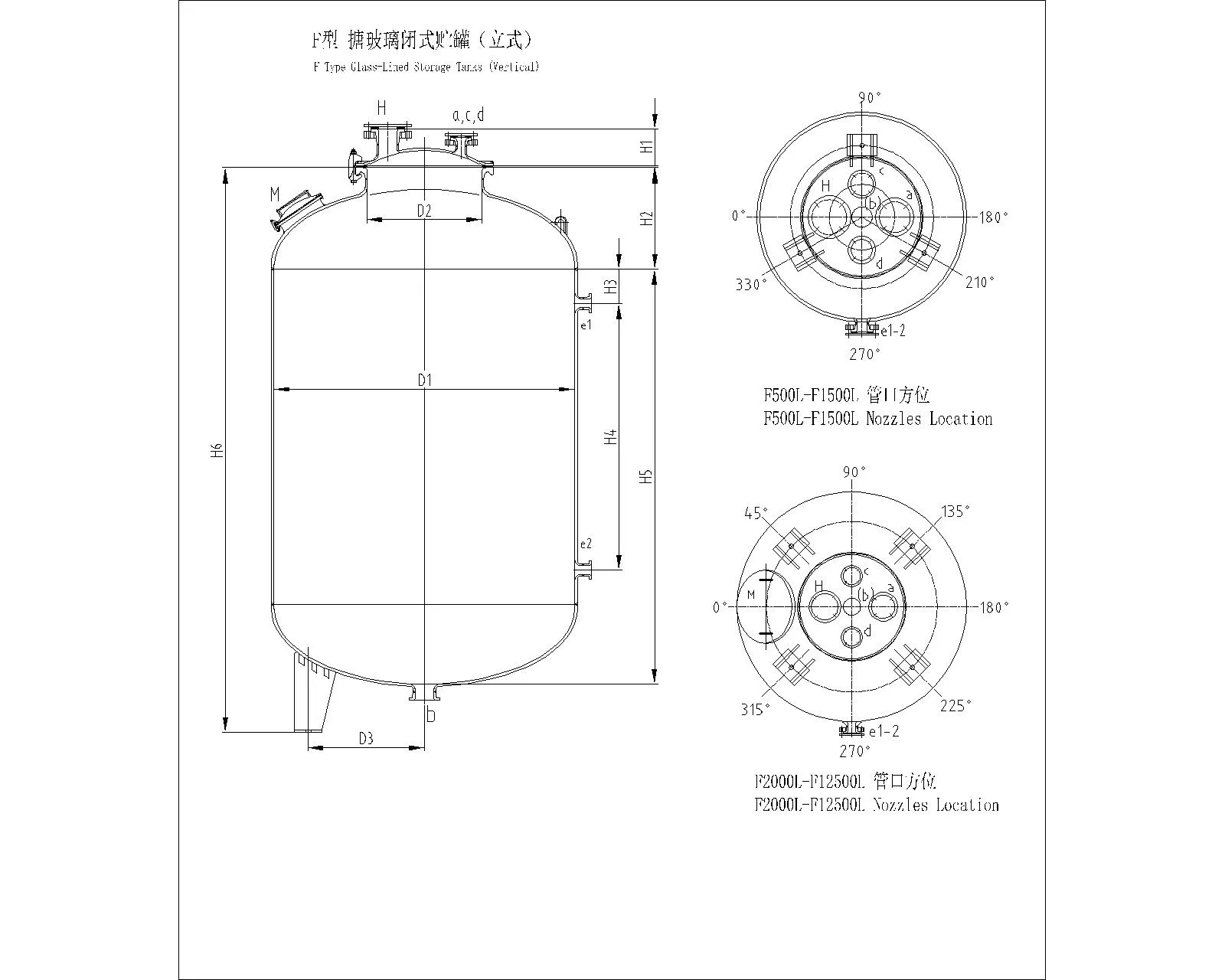

Technical Specifications
Technical Specifications
Nominal
Capacity
VN/L 		Main Dimensions Nozzle DN
D1 D2 D3 H1 H2 H3 H4 H5 H6 H M a b c d e1,e2
500 900 500 315 160 355 100 500 950 1745 100 - 80 80 50 50 65
800 1000 500 350 160 380 120 560 1075 1890 100 - 80 100 50 50 65
1000 1000 500 350 160 380 120 830 1345 2170 100 - 80 100 50 50 65
1500 1200 500 420 160 430 120 955 1520 2438 100 - 80 100 50 50 65
2000 1300 500 475 160 455 120 1010 1600 2525 100 - 80 100 50 50 65
3000 1450 600 550 180 518 120 1260 1888 2900 125 - 100 125 80 80 65
4000 1600 600 600 180 555 150 1480 2205 3250 125 - 100 125 80 80 65
5000 1600 600 600 180 555 150 1870 2595 3640 125 - 100 125 80 80 65
6300 1750 600 675 180 592.5 150 1900 2663 3715 125 - 100 125 80 80 65
8000 2000 600 750 180 655 150 1860 2685 3841 125 - 100 125 80 80 65
10000 2200 600 825 180 720 150 1900 2790 4000 125 400×300 100 150 80 80 100
12500 2200 600 825 180 720 150 2470 3360 4568 125 400×300 100 150 80 80 100

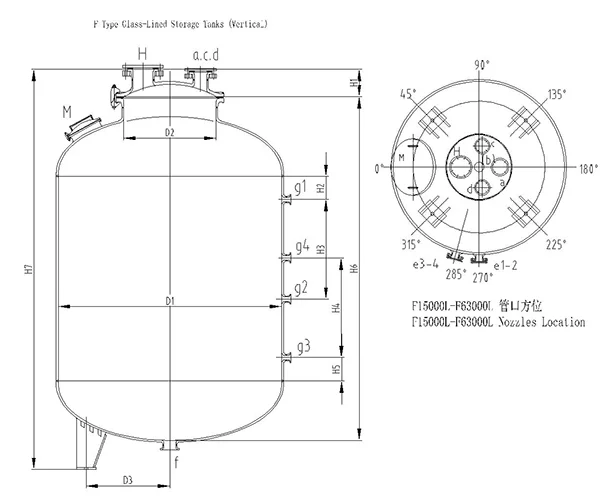

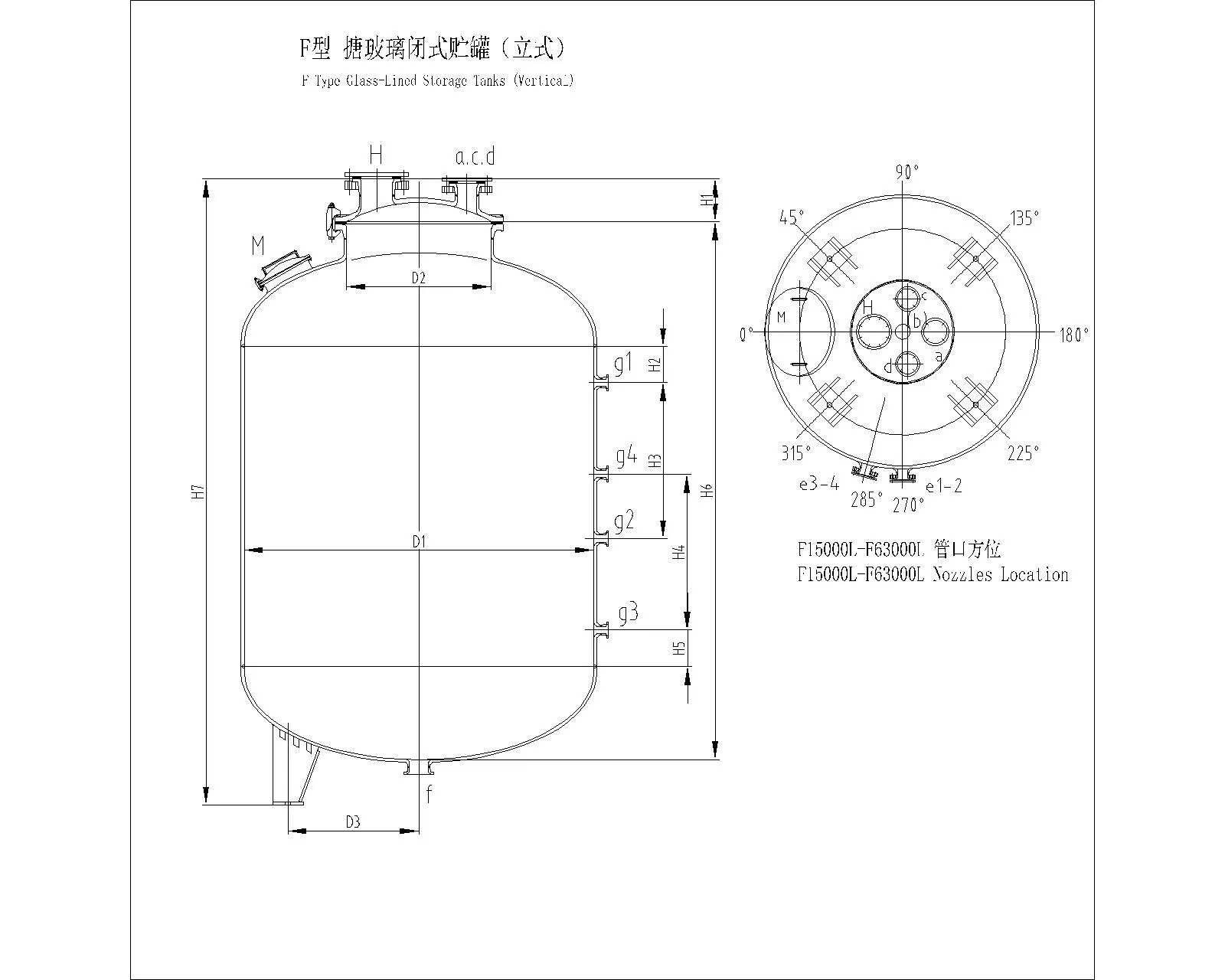

Technical Specifications
Nominal
Capacity
VN/L 		Main Dimensions Nozzle DN
D1 D2 D3 H1 H2 H3 H4 H5 H6 H7 M H a b c d e1-e4
15000 2400 600 900 180 200 1400 1400 200 4210 4712 400×300 125 100 150 80 80 100
16000 2400 600 900 180 200 1450 1450 200 4350 4850 DN400 125 100 150 80 80 100
20000 2600 600 975 180 200 1530 1530 200 4650 5120 DN400 125 100 150 80 80 100
25000 2800 600 1050 180 200 1700 1700 200 5080 5580 DN400 125 100 150 80 80 125
30000 3000 600 1125 180 200 1730 1730 200 5230 5715 DN400 125 100 150 80 80 125
40000 3200 600 1200 180 200 2120 2120 200 6030 6470 DN400 125 100 200 80 80 125
